Aggregator-Collector Combos

What is an Aggregator-Collector hybrid?

An aggregator-collector (or hybrid) is an APARAVI software component that combines the functionalities of an aggregator and a collector. It is a way to streamline the components installation, as it only requires one component and one server.

The hybrid connects to the data source/sources, indexes the data, and sends the indexed data to the database for storing. It also communicates with the APARAVI platform.

Windows Install

Installing the Aggregator-Collector:

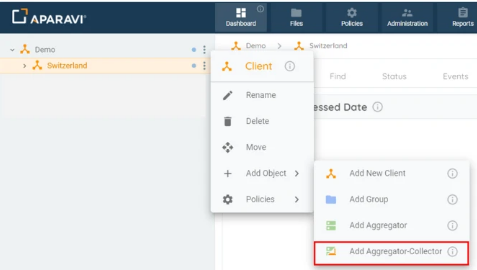

  1. Complete the Aggregator-Collector setup form.
  2. Click Download to send the the Windows installer file from the Platform to your local machine.

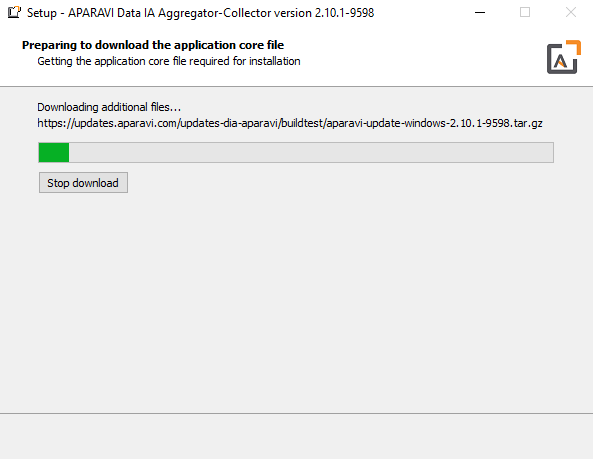

To start the installation, click on the downloaded file from your browser, or from the location received. This will then start the download of the packets, extraction, and installation of the software.

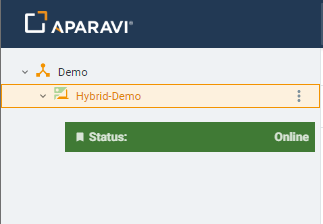

Upon installation completion, verify Aggregator-Collector online status by hovering over its name. Resolve any post-installation issues by ensuring firewall dependencies are met.

Linux Install

Installing the Aggregator-Collector:

  1. Complete the Aggregator-Collector setup form.
  2. Click download to send the the Linux installer file (with a .run extension) from the Platform to your local machine.
  3. Open a terminal in the directory where the downloaded file is located, usually the user’s Downloads directory.
  4. Make the file executable to proceed with the installation.

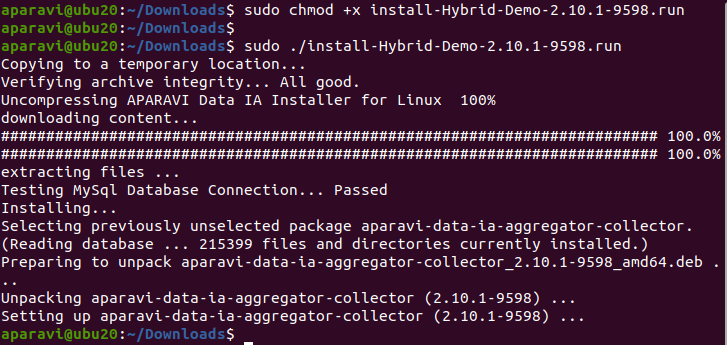

To start the installation, use its filename name as the command to run, for example:

sudo ./install-Hybrid-Demo-2.10.1-9598.run

This will then start the download of the packets, extraction, and installation of the software.

After the installation has completed, the Aggregator-Collector should show the online status when hovering over its name. If there are any issues during or after installation, ensure that the firewall dependencies have been met.

Aparavi Install

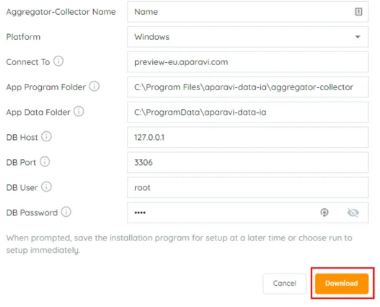

A new window will appear with the Information that would need to be filled in to initiate the download.

  • Aggregator-Collector Name – the name for the aggregator within the Aparavi portal
  • Platform – Operating system to be used (Windows/Linux)
  • Connect To – auto-populated with Aparavi portal URL
  • App Program Folder – location for the install (Windows)
  • App Data Folder – location for the user data (Windows/Linux)
  • DB Host – MySQL host IP, localhost by default
  • DB Port – 3306 default
  • DB User – the designated user for MySQL DB
  • DB Password – password for the MySQL DB user

Select the Download button once all required information has been entered. This will initiate the aggregator-collector installer download locally.
