Collectors

What is a Collector?

The installation of Collector streamlines the connectivity between the various data sources and the aggregator. To set up a standalone Collector, it is necessary to deploy at least one Aggregator before incorporating a collector into the system.

The Collector discovers and collects metadata and contents from over 6,000 different file formats – no matter whether it is stored on-premises, in the cloud or in hybrid storage scenarios. Once information has been indexed, it can be transmitted to the Aggregators via a TLS-secured TCP/IP connection. The Aparavi platform requires at least one of each component or a hybrid Aggregator-Collector to collect data from your infrastructure. All data collected from your sources will remain on the Aggregator and is not transferred to the Aparavi platform itself.

Windows Install

Complete the Collector setup form.

  1. Click Download to send the the Windows installer file from the Platform to your local machine.

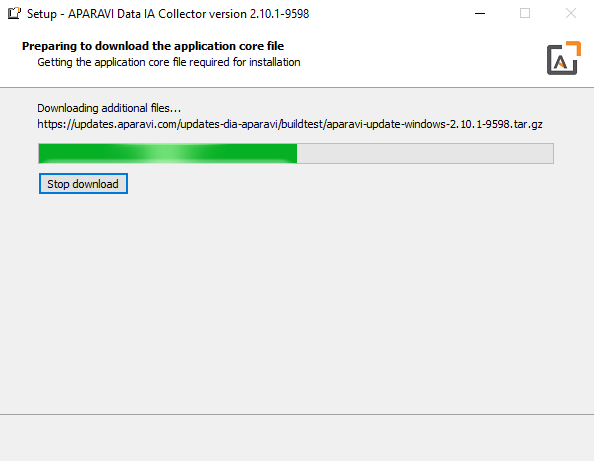

To start the installation, click on the downloaded file from your browser, or from the location received. This will then start the download of the packets, extraction, and installation of the software.

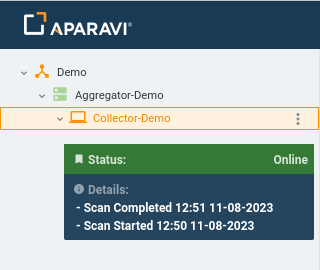

Upon installation completion, verify Collector’s online status by hovering over its name. Address any installation or post-installation issues by confirming firewall dependencies.

Linux Install

Installing the Collector:

  1. Complete the Collector setup form.
  2. Click download to send the the Linux installer file (with a .run extension) from the Platform to your local machine.
  3. Open a terminal in the directory where the downloaded file is located, usually the user’s Downloads directory.
  4. Make the file executable to proceed with the installation.

To start the installation, use its filename name as the command to run, for example:

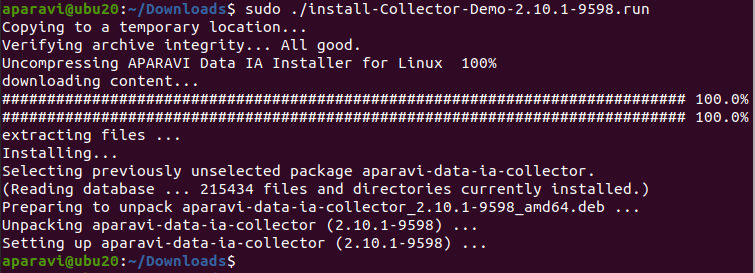

sudo ./install-Collector-Demo-2.10.1-9598.run

This will then start the download of the packets, extraction, and installation of the software.

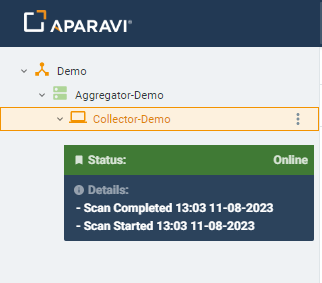

After the installation has completed, the Collector should show the online status when hovering over its name. If there are any issues during or after installation, ensure that the firewall dependencies have been met.

Aparavi Install

How is a Collector created?

  • Log in on your client level in the APARAVI platform
  • Use the tree on the left panel to navigate to the aggregator that you want to use for the collector to connect.

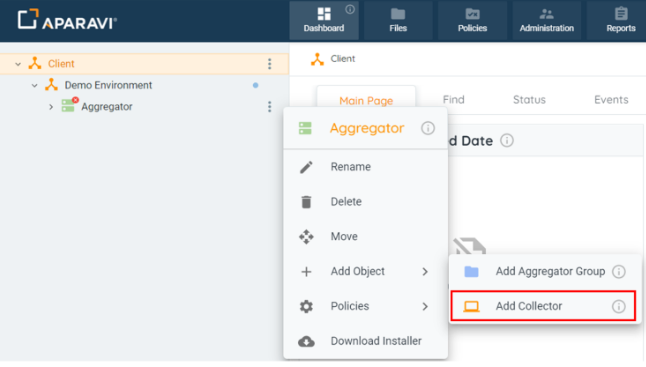

  • Click on the level object to bring up the menu, scroll down to and click +Add Object.
  • Select “Add Collector”

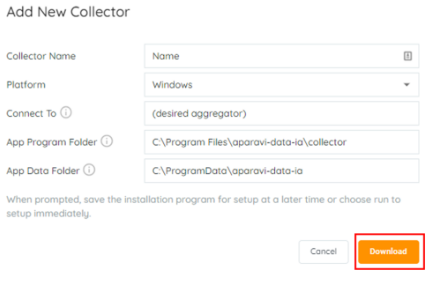

A new modal window will open, presenting the necessary information you must complete to commence the download of the collector package.

  • Collector Name – the name for the collector within the APARAVI platform
  • Platform – operating system (Windows or Linux)
  • Connect To – hostname or IP of the aggregator used for the collector to connect
  • App Program Folder – location for the installation (Windows only)
  • App Data Folder – location for the user data (Windows/Linux)

Select the Download button once all required information has been entered. This will initiate the collector installer download locally.
