Relativity Server

Aparavi allows business users to automate data actions by linking sources and targets, no code or command line necessary.
Creating targets allows the system to direct data into pre-configured data services. This enables businesses to build custom workflows for data hygiene, compliance, and retention use cases.

We are now able to add business applications as Targets and help build automation into their business process workflows.

Configuring a Relativity Server Target Service

  1. Click on the Policies tab, located in the top navigation menu.
  2. Click on the Targets subtab.
Targets Subtab
  1. Click on the Add Integration button under Integrations, located in the upper right-hand corner of the screen. Once this button is clicked, the Add Integration pop-up box will appear.

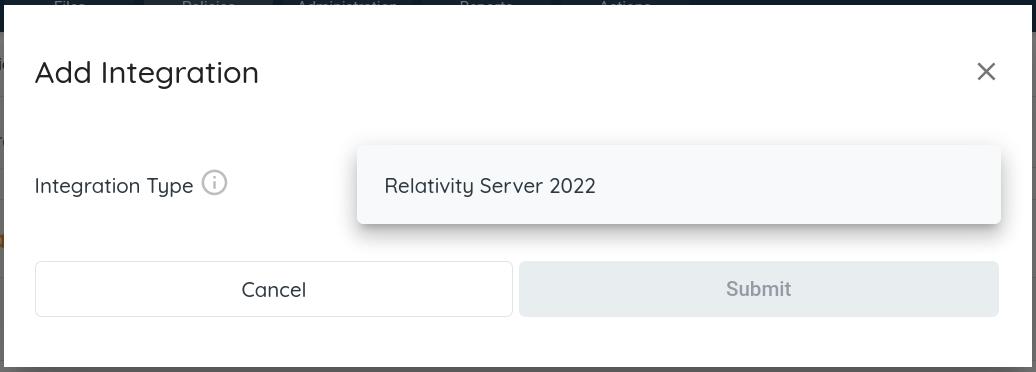

Add Integration pop-up
  1. Inside the Add Integration pop-up box, click the Integration Type field and select the Relativity Server 2022 option.

  1. Once Relativity Server 2022 option is selected, enter the fields to configure the target:
    • Address: Enter the domain part of the Relativity server URL, excluding the protocol. Example: relativity.yourcompany.com.
    • User Name: Provide the email address associated with your Relativity admin account.
    • Password: Enter the password for your Relativity admin account.
    • Workspace: Specify the name of the Relativity workspace you want to connect to.
    • Workspace Path: Input the folder path within the selected Relativity workspace for the objects to be integrated.
    • Control Number Prefix: Add a prefix to be used for new objects in Relativity. This prefix will be complemented by a seven-digit auto incremental number. Example: for the prefix ‘MYCN’ the control numbers ‘MYCN_0000001’, ‘MYCN_0000002’, etc. will be generated.
    • Store Path: Enter the network path to the storage for files linked to Relativity objects. Example: \\file-server\relativity-files.
    • Store User Name: Provide the account with read/write permissions to the file storage.
    • Store Password: Enter the password for the account used to access the file storage.
Add Relativity Server 2022 Target
  1. After completing all sections within the Add Target pop-up box, select the Validate button located at the bottom of the “Add Target” pop-up box.

If Validation is Successful: The system will display a green success message along the bottom of the Add Target pop-up box.

If Validation is Not Successful: The system will display a red error message along the bottom of the Add Target pop-up box. Please check the fields for errors and make necessary corrections.

  1. Once the system has completed validation with the Relativity Server target service, the Submit button will be highlighted in orange to indicate that the button is now active. Click the Submit button.
  2. Click on the Save All Changes button.
  3. Configure the Data Action Transform to use Relativity Transform Target service
  4. Select the appropriate query to filter down the result set.
  5. Save the Data Action Transform and it will be executed.
