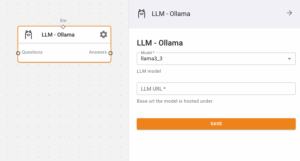

Ollama

The Ollama node allows users to connect to a locally or remotely hosted Ollama LLM endpoint. It sends natural language prompts to the model and returns generated responses. This is useful for use cases such as summarization, Q&A, and instruction following

Inputs

  • Prompt – Text prompt for the model
  • Questions – This port receives the prompt or question to be sent to the LLM. The input must be in plain text format
  • Documents – Document objects for context
  • System – System instructions for the model

Outputs

  • Text – Generated text output
  • Answers – This port outputs the generated text response from the LLM based on the input provided

Configuration

Connection Settings

  • Host – Ollama server host
    • Default – “localhost”
    • Note – IP address or hostname
  • Port – Ollama server port
    • Default – 11434
    • Note – Default Ollama API port
  • Secure – Use HTTPS connection
    • Default – false
    • Note – Set to true for TLS/SSL

Model Settings

  • Model – Ollama model to use
    • Default – “llama2”
    • Note – Any model available in your Ollama installation
      • Llama2 for general-purpose tasks
      • CodeLlama for programming tasks
      • Mistral for high-quality reasoning
      • Phi-2 for lightweight applications
  • Temperature – Creativity/randomness level
    • Default 0.7
    • Note – Range: 0.0-1.0
  • Max Tokens – Maximum response length
    • Default – 1024
    • Note – Limits output size

Advanced Settings

  • Top P – Nucleus sampling parameter
    • Default – 0.95
    • Note – Controls diversity
  • Top K – Top-K sampling parameter
    • Default – 40
    • Note – Limits token selection
  • System Prompt – Default system instructions
    • Note – Sets model behavior
  • Stop Sequences – Sequences to stop generation
    • Default – []
    • Note – Custom stop tokens
  • Context Window – Maximum context length
    • Default – 4096
    • Note – Model-dependent

Example Usage

Basic Text Generation

This example shows how to configure the Ollama LLM for basic text generation:
{
"host": "localhost",
"port": 11434,
"model": "llama2",
"temperature": 0.7,
"maxTokens": 1024,
"topP": 0.95
}

RAG Implementation with Mistral Model

For a Retrieval-Augmented Generation (RAG) implementation using the Mistral model:
{
"host": "localhost",
"port": 11434,
"model": "mistral",
"temperature": 0.3,
"maxTokens": 2048,
"systemPrompt": "You are a helpful assistant that answers questions based on the provided documents. Always cite your sources and maintain a professional tone.",
"topP": 0.9,
"contextWindow": 8192
}

Best Practices

Resource Management

  • Ensure your system has adequate RAM for your chosen model
  • Consider quantized models (e.g., Q4_K_M) for reduced memory usage
  • Monitor system resources during operation

Performance Optimization

  • Adjust temperature based on task requirements (lower for factual responses, higher for creative content)
  • Set appropriate max tokens to avoid unnecessary processing
  • Tune context window size based on your model’s capabilities

Troubleshooting

Connection Problems

  • Connection refused – Verify Ollama is running and accessible
  • Model not found – Ensure the model is downloaded (ollama pull modelname)
  • Timeout errors – Check system resources or reduce context size

Response Quality Issues

  • Irrelevant responses – Refine prompts or adjust system instructions
  • Inconsistent outputs – Lower temperature for more deterministic responses
  • Truncated responses – Increase max tokens setting or reduce input size

Technical Reference

For detailed technical information, refer to:
