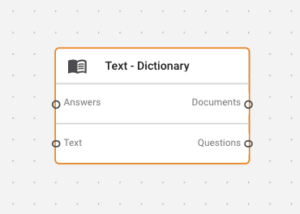

Dictionary

The Dictionary node enables lookups, tagging, or transformations using a predefined dictionary structure. It can operate over documents, questions, or general text, and emit structured outputs to be used in retrieval-augmented generation (RAG), classification, or enrichment pipelines.

Inputs

  • Documents – Optional supporting documents for context or reference
  • Text- Raw or structured text to process through the dictionary
  • Questions/Term – Optional list of user queries for contextual matching or enrichment

Outputs

  • Definitions – Generated term definitions
  • Documents – Documents with annotations or tags resulting from dictionary matches
  • Answers – Structured answers or matches from the dictionary
  • Questions – Processed or enriched questions that may include mapped terms or synonyms

Configuration

Term Extraction

  • Extraction Method – Method to identify terms
    • Default – “auto”
    • Options – auto, regex, nlp, predefined
  • Max Terms – Maximum terms to extract per document
    • Default – 20
    • Notes – Limits processing time
  • Min Term Length – Minimum character length for terms
    • Default – 3
    • Notes – Filters out short terms
  • Term Filters – Filters to apply to extracted terms
    • Default – []
    • Examples – POS tags, frequency thresholds

Definition Generation

  • Definition Source – Source for definitions
    • Default – “context”
    • Options – context, llm, dictionary, custom
  • LLM Provider – LLM provider for definitions
    • Default – null
    • Notes – Required if definition source is “llm”
  • Context Window – Number of characters around term for context
    • Default – 500
    • Notes – For context-based definitions
  • Definition Length – Target character length for definitions
    • Default – 200
    • Notes – Approximate length guidance

Advanced Settings

  • Deduplication – Remove duplicate terms
    • Default – true
    • Notes – Across all processed documents
  • Custom Dictionary – Path to custom dictionary file
    • Default – null
    • Notes – For custom definition sources
  • Term Grouping – Group related terms
    • Default – false
    • Notes – Creates term hierarchies

Example Usage

Basic Term Extraction and Definition

This example shows how to configure the Definitions component for basic term extraction and definition:

{
"extractionMethod": "nlp",
"maxTerms": 15,
"minTermLength": 4,
"definitionSource": "context",
"contextWindow": 600,
"definitionLength": 150,
"deduplication": true
}

LLM-Powered Technical Glossary

For creating a technical glossary using an LLM:

{
"extractionMethod": "nlp",
"maxTerms": 30,
"minTermLength": 3,
"termFilters": [ {"type": "pos", "tags": ["NOUN", "PROPN"]}, {"type": "frequency", "minOccurrences": 2} ],
"definitionSource": "llm",
"llmProvider": { "provider": "openai", "model": "gpt-4", "temperature": 0.3, "prompt": "Define the following technical term in 1-2 sentences: {term}" },
"definitionLength": 200,
"deduplication": true,
"termGrouping": true
}

Example

  • Input – “Our infrastructure uses Kubernetes and S3.”
  • Dictionary – {“Kubernetes”: “cloud-native orchestrator”, “S3”: “Amazon object storage”}
  • Output
    • Answers – Definitions for matched terms
    • Documents – Original text with terms tagged or explained
    • Questions – May be rephrased with definitions added for clarity

Best Practices

Term Extraction

  • Use NLP-based extraction for technical documents
  • Use regex for documents with predictable term patterns
  • Apply appropriate filters to reduce noise in extracted terms
  • Consider domain-specific term extraction rules

Definition Generation

  • Use context-based definitions when document contains explanations
  • Use LLM-based definitions for technical or specialized terminology
  • Provide custom dictionaries for domain-specific terminology
  • Adjust context window size based on document structure
  • Ensure Dictionary is Configured (Not shown in this screenshot)
  • If a UI or configuration file for dictionary terms exists, populate or validate the terms being matched.
  • Dictionaries typically consist of key-value pairs, synonyms, or tagged patterns.
  • Connect Answers to a downstream QA or retrieval system.
  • Connect Documents to a storage or annotation step.
  • Connect Questions to LLM or search nodes to enrich prompt quality

Troubleshooting

Extraction Problems

  • Too many irrelevant terms – Adjust term filters or increase min term length
  • Missing important terms – Try different extraction methods or reduce filters
  • Duplicate terms with variations – Enable term grouping

Definition Problems

  • Definitions too generic – Use domain-specific LLM prompts or custom dictionaries
  • Definitions missing context – Increase context window size
  • Inconsistent definition quality – Try different definition sources
Technical Reference

For detailed technical information, refer to:
